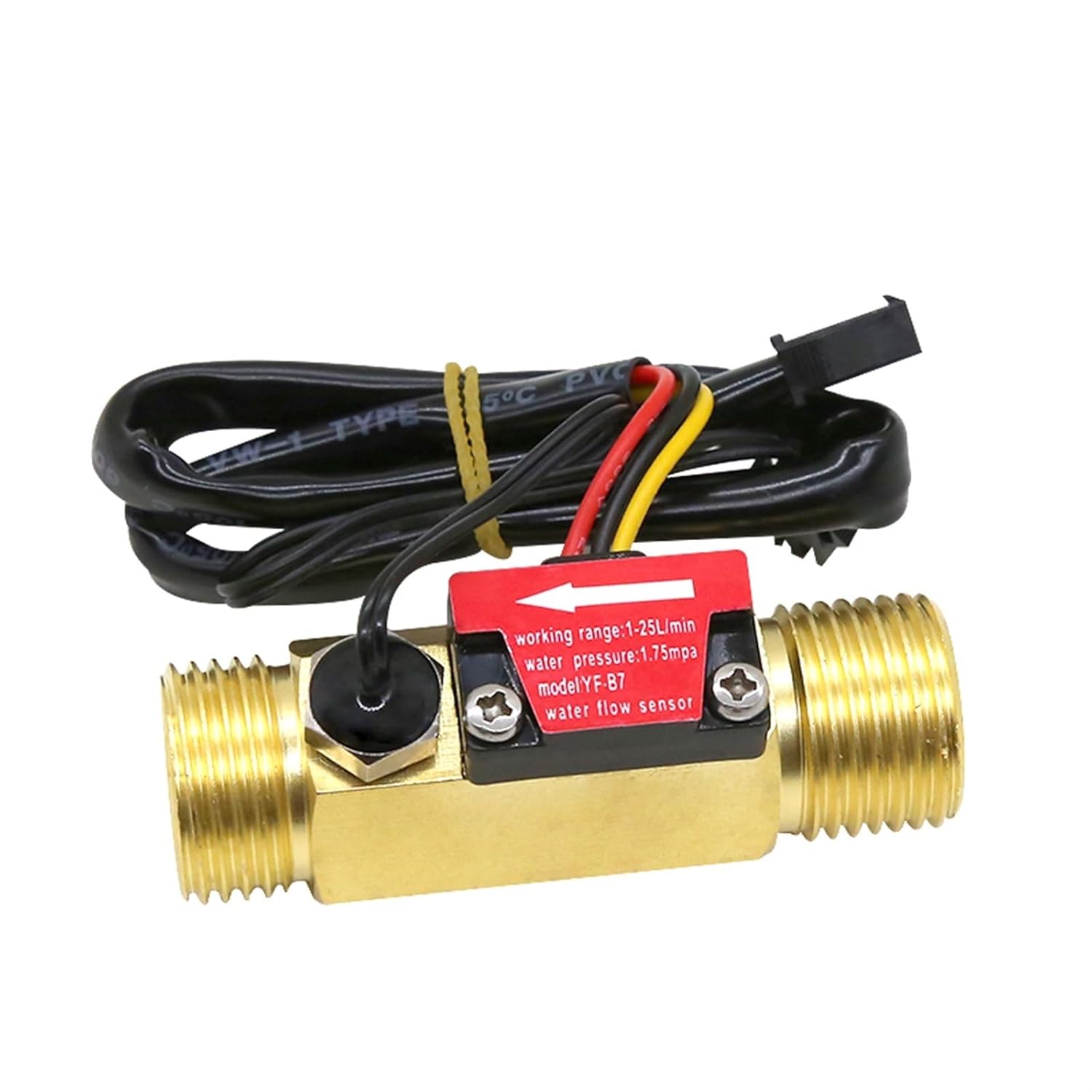

1/2" 3/4" Water Flow Sensor Switch with Temperature Detection for Turbine Liquid Sensor Copper Shell Hall Flow Meters(1/2")
Product details
| Management number | 221349796 | Release Date | 2026/05/03 | List Price | US$13.54 | Model Number | 221349796 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Material: BrassType: Hall Flow Rate MeterMounting Position: Horizontal & VerticalApplication: Water heater, broiler and heat pump ...etc.Rated Voltage: DC 5VPressure Resistance: ≥1.75MPaWorking Voltage Range: DC 5-15VInsulation Resistance: >100MΩFlow Pulse: (11*Q) Q=L/Min±3%Output Pulse Duty Ratio: 50%±10%Accuracy: (1～25L\MIN﹞±3%Size: G 1/2"Quantity: 1 PcFlow Sensor Technical Data(1) Flow Rate: 1~25 L/min(2)Flow Pulse: F= 11 *Q ± 5% , Q=L/min(3) Working Voltage: DC3V ~ 24V(4) Working Current: 15mA(5) Suffering Pressure: Max 1.5Mpa(6) Working Temperature: -40 °C ~+80 °C,(7)Min Insulation Resistance:100M Ohm(8)Output Pulse Duty Cycle: 50% +/- 10%(9) Max output Pulse Voltage: >DC4.7V ( input voltage DC5V)<;DC0.5V ( input voltage DC5V)(11) Sensor: Hall effect sensor, Digital Output. and temperature sensor(12) Wire Connection :Terminal 1 ( Red) : Vdd " + "Terminal 2 (Black) Vout " - "Terminal 3 ( Yellow ) Gnd : outputTerminal 4 Temp SensorTerminal 5 Temp. Sensor(13) Connector: Housing XH2.5-3PTEMPERATURE VS RESISTANCE TABLEResistance 50k Ohms at 25deg. CB Value 3950K at 25/50 deg. CTemp. Range:－40-＋150℃
- 1/2" 3/4" Water Flow Sensor Switch With Temperature Detection For Turbine Liquid Sensor Copper Shell Hall Flow Meters
| Item Weight | 1.1 pounds |
|---|---|
| Manufacturer | FUWEIDIANZISHANGWU |
| Item model number | FFDSPAPRX |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
